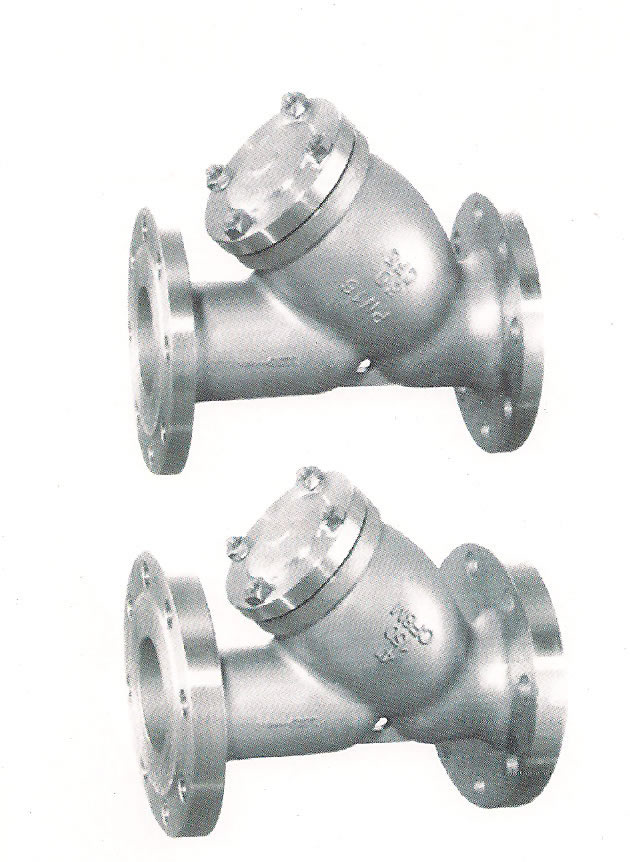

“思费代理销售丹佛斯品牌Y型法兰过滤器不锈钢过滤器”参数说明
“思费代理销售丹佛斯品牌Y型法兰过滤器不锈钢过滤器”详细介绍
性能规范
公称压力：
PN1.6-6.4Class?150/300,10k20k
强度试验压力
PT1.5PN
适用介质：
SY41-(16-64)C
水、油品、气
SY41-(16-64)P
**类
SY41-(16-64)R
醋酸类
适用温度：
-20
～
180
℃
主要零件材料?Materials?of?main?parts
| 零件名称?Descriptpon?Parts
|
SY41-(16-64)C
|
SY41-(16-64)P
|
SY41-(16-64)R
|
| 阀体?Body
|
WCB
|
ZG1Cr18Ni9Ti?CF8
|
ZG1Cr18Ni12Mo2Ti?CF8M
|
| 阀盖Bonnet
|
WCB
|
ZG1Cr18Ni9Ti?CF8
|
ZG1Cr18Ni12Mo2Ti?CF8M
|
| 阀瓣Disc
|
1Gr18Ni9ti?304
|
1Gr18Ni9ti?304
|
1Gr18Ni12Mo2Ti?316
|
| 垫片Gasket
|
聚四氟乙烯/钢带石墨缠绕??Polytetrafluorethyiene（PTFE)/Stainless?steel?and?graphite?spiral?wound
|
主要外形尺寸
Main?outer?size
| DN
|
L
|
PN16
|
D
|
K
|
D1
|
C
|
N-φ
|
Class?150
|
D
|
K
|
D1
|
C
|
N-φ
|
10k
|
D
|
K
|
D1
|
C
|
N-φ
|
| 15
|
130
|
95
|
65
|
45
|
14
|
4-14
|
89
|
60.5
|
35
|
10
|
4-15
|
95
|
70
|
52
|
12
|
4-15
|
| 20
|
150
|
105
|
75
|
55
|
14
|
4-14
|
98
|
70
|
43
|
11
|
4-15
|
100
|
75
|
58
|
14
|
4-15
|
| 25
|
160
|
115
|
85
|
65
|
14
|
4-14
|
08
|
79.5
|
51
|
12
|
4-15
|
125
|
90
|
70
|
14
|
4-19
|
| 32
|
170
|
135
|
100
|
78
|
16
|
4-18
|
117
|
89
|
64
|
12
|
4-15
|
135
|
100
|
80
|
16
|
4-19
|
| 40
|
200
|
145
|
110
|
85
|
16
|
4-18
|
127
|
98.5
|
73
|
14.5
|
4-15
|
140
|
105
|
85
|
16
|
4-19
|
| 50
|
220
|
160
|
125
|
100
|
16
|
4-18
|
152
|
120.5
|
92
|
16
|
4-19
|
155
|
120
|
100
|
16
|
4-19
|
| 65
|
260
|
180
|
145
|
120
|
18
|
4-18
|
178
|
139.5
|
105
|
17.5
|
4-19
|
175
|
140
|
120
|
18
|
4-19
|
| 80
|
280
|
195
|
160
|
135
|
20
|
8-18
|
190
|
152.5
|
127
|
19
|
4-19
|
185
|
150
|
130
|
18
|
8-19
|
| 100
|
300
|
215
|
180
|
155
|
20
|
8-18
|
229
|
190.5
|
157
|
24
|
8-19
|
210
|
175
|
155
|
18
|
8-19
|
| 125
|
350
|
245
|
210
|
185
|
22
|
8-18
|
254
|
216
|
186
|
24
|
8-23
|
250
|
210
|
185
|
20
|
8-23
|
| 150
|
390
|
280
|
240
|
210
|
24
|
8-23
|
279
|
214.5
|
216
|
25.4
|
8-23
|
280
|
240
|
215
|
22
|
8-23
|
| 200
|
500
|
335
|
295
|
265
|
26
|
12-23
|
343
|
298.5
|
270
|
29
|
8-23
|
330
|
290
|
265
|
22
|
12-23
|
|
